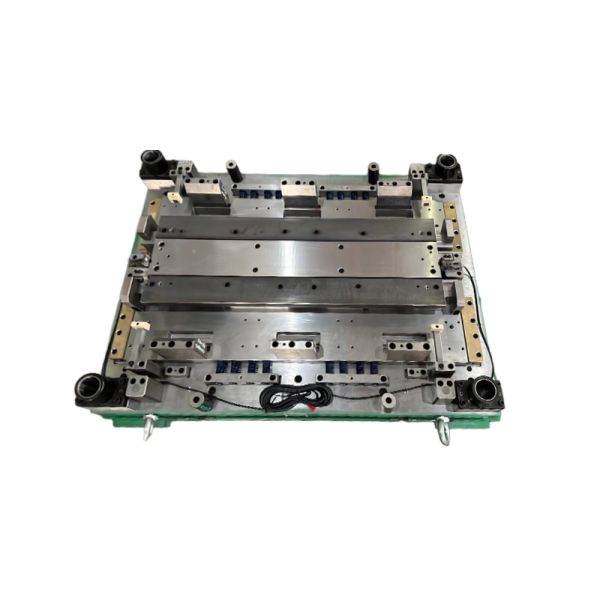

SGCC Steel Stamping Tool Sheet Metal Stage Tool For Refrigerator Door Panel

Brand Name : IDO

Model Number : Refrigerator door panel

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Refrigerator door panel

Part Material : SGCC

Mould Type : Stage mold

Mould Size : 1500*1100*550mm

Mould Weight : 2T

Punch Tonnage : 200T

Mould Life : 1,000,000 shots

Standard Parts Brand : MISUMI

Contact Now

Steel Stamping Tool SGCC Sheet Metal Stage Tool For Refrigerator Door Panel With Compatibility

Description:

Engineered for the precision manufacturing of refrigerator door panels, our Steel Stamping Stage Tool is designed for use with SGCC sheet metal. This tooling system offers superior compatibility, allowing for seamless integration into diverse production environments. It provides a reliable and efficient solution that ensures consistent quality and dimensional accuracy for every stamped part.

Quick Detail:

Cycle: 6~14 seconds (specific value determined by product characteristics)
Punch edge sharpening: Required after 200,000~300,000 shots
Lifting Method: The type of hardware for safely handling and installing the die.
Safety Features: Integrated sensors to prevent damage from part or slug jams.

Metal Stamping Tooling Released Commercial Components Brands:

Item		Option 1	Option 2	Option 3
1	Standard piercing punches (with or without ejectors)	MISUMI	DAYTON	FIBRO
2	Standard piercing matrix	MISUMI	DAYTON	FIBRO
3	Guide elements columns, bushes, die sets (precision plates)	MISUMI	FIBRO	DANLY
4	Sliding wear plates (bronze plus graphite)	MISUMI	FIBRO	DAYTON
5	Cam mechanisms	MISUMI	FIBRO	OMCR
6	Coil steel springs	MISUMI	FIBRO	SPECIAL SPRINGS
7	Nitrogen gas springs	MISUMI	KALLER	SPECIAL SPRINGS
8	Screws,fastener, pins, stripper bolts,	MISUMI	FIBRO	DAYTON
9	Spring guide pins, pilots, ejectors ,stock lifters, pad retainer, pilot shedders	MISUMI	FIBRO	DAYTON
10	Rotary bending mechanisms	MISUMI	DAYTON
11	Lifting elements / rotary eyebolts	MISUMI	FIBRO	DAYTON
12	Pneumatic valves and electrovalves	MISUMI	FESTO	SCHMALZ
13	Scraps pneumatic evacuator/shakers	MISUMI	FIBRO
14	Electrical connectors	HARTING	HARTING	ILME
15	Tool Steel	ASSAB	ASSAB	GROEDITZ
16	PVD Coating	OERLIKON	OERLIKON
17	Tool Bronze	AMPCO	AMPCO

SGCC Steel Stamping Tool Sheet Metal Stage Tool For Refrigerator Door Panel
